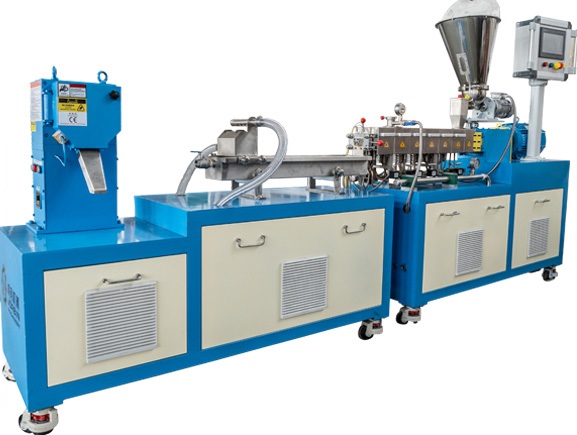

Laboratory Compounding Twin Screw Extrusion Granules Making Machine

Device overview

Laboratory Compounding Twin Screw Extrusion Granules Making is a lab machine which is designed for compounding PE (LLDPE, LDPE, HDPE), PP, TPE and Copolymers such as SBS,Color batches,Filler modified resin and additives ( UV protection Materials, Modified, EVA, black carbon granule, flame-retardant granule.

The machine has excellent mixing performance, good self-cleaning performance and flexible modular configuration characteristivs which make them suitable for processing different types of material.

Different kinds of side doser is used to feeder different kinds or types of material. There is also doser to weight the additives material to make up a prescription.

Parameter of such kinds machine

SINGLE STAGE EXTRUSION LINE

Model	TSSK20	TSSK35	TSSK50	TSSK65	TSSK75	TSSK95
Screw diameter (MM)	21.7	35.6	50.5	62.4	71.2	91
L/D	32~40	28~48
Extruder speed (RPM)	600	400	400/600	400/500	500/600	500/600
Main Motor Power (KW)	4	11/15	37/45	55/75	90/110	200/250
Capacity (KG)	2~10	10~80	80~150	250~400	350~500	800~1000

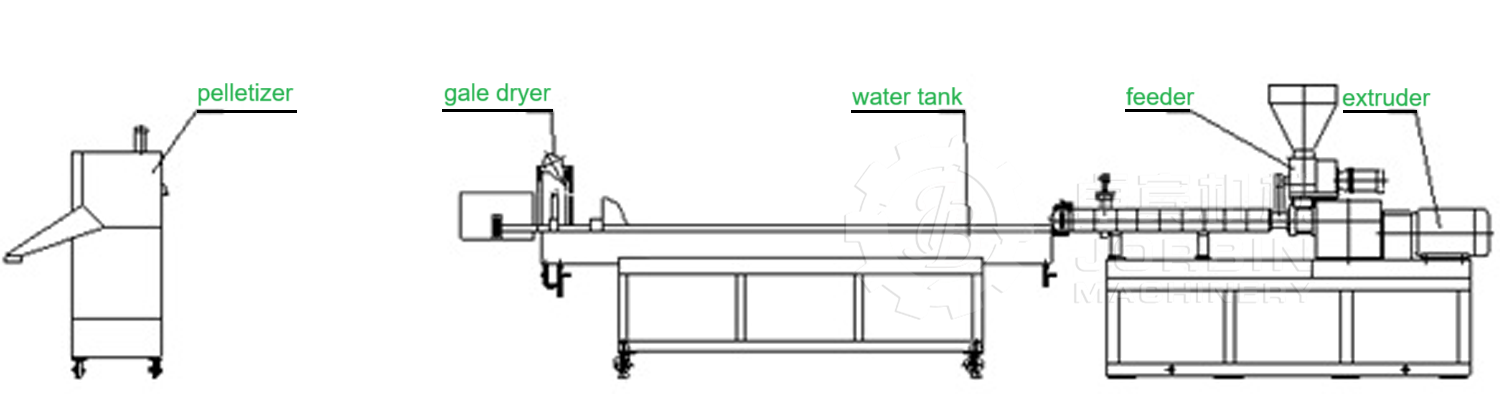

Machine details

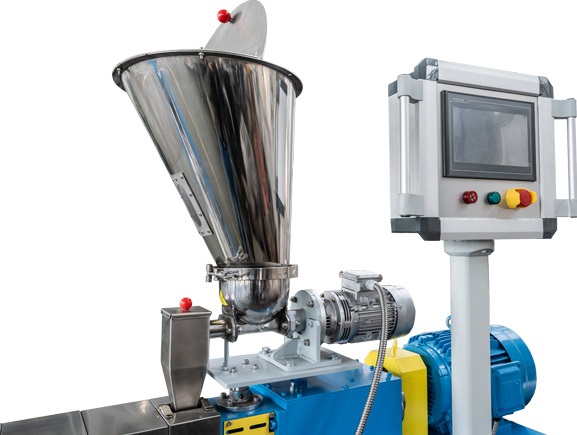

Extruder with Feeders

With special design of combination for screw and element, the plastic and additives will be well melted, plasticized and compounded. With the vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency. Then the final granules can be widely used in various fields. Each kinds of feeders can feed different material or additives, like granules and powders.

Extruder

Different designed of ecrew combination for different types of material, such as granules, powder and liquid. Mechanotronicas design, high accurately measure, stabillization feeding. Widely measure range.All process for material treatment is conducted in airproof environmenet, without rising dust.

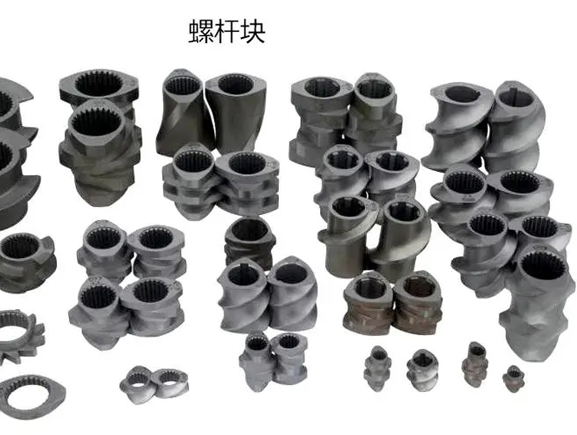

Screw elements

Screw & elements: W6Mo5Cr4V2 (6542#) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.

Barrel

The barrel is made of 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth and abrasion resistant. The hardness is HRC60-64. And each section of barrel has its won fuction

Die head

Two holes on the die, the mateiral come out from the die and go into the water tank. It is eaily to control

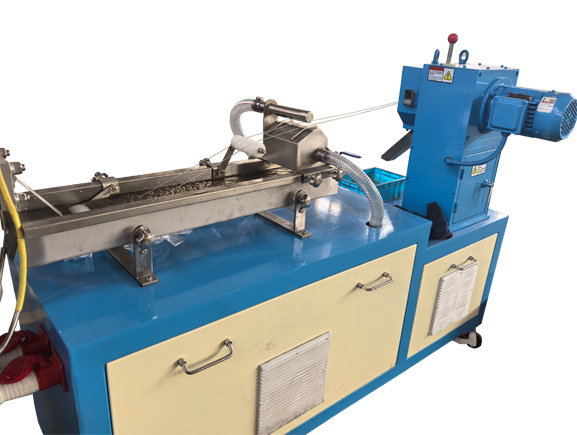

Water tank

A small water tank can cool the material and there is a gale dryer on it to blow the water on the sureface of the material.

Pelletizer

A small pelletizer after the water tank to cut the mateiral into granules, its speed also can be controlled.

JORBIN MACHINER, we promise to supply high quality machine with high competitive prices.

Expecting cooperation with you, Let us become friendly partners, common development!
