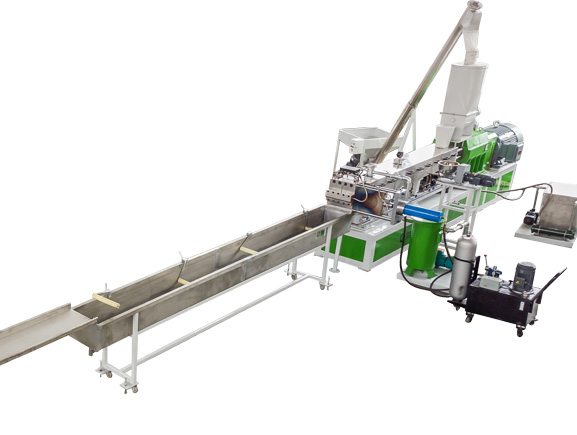

Pp Masterbatch Twin Screw Compounding Extrusion Line 75mm High Torque

Device overview

Pp Masterbatch Twin Screw Compounding extrusion Line 75mm High Torque is specially designed for compounding PE (LLDPE, LDPE, HDPE), PP, TPE and Copolymers such as SBS,Color batches,Filler modified resin and additives ( UV protection Materials, Modified, EVA, black carbon granule, flame-retardant granule.

The machine has excellent mixing performance, good self-cleaning performance and flexible modular configuration characteristivs which make them suitable for processing different types of material.

Different kinds of side doser is used to feeder different kinds or types of material. There is also doser to weight the additives material to make up a prescription.

Parameter of such kinds machine

SINGLE STAGE EXTRUSION LINE

Model	TSSK20	TSSK35	TSSK50	TSSK65	TSSK75	TSSK95
Screw diameter (MM)	21.7	35.6	50.5	62.4	71.2	91
L/D	32~40	28~48
Extruder speed (RPM)	600	400	400/600	400/500	500/600	500/600
Main Motor Power (KW)	4	11/15	37/45	55/75	90/110	200/250
Capacity (KG)	2~10	10~80	80~150	250~400	350~500	800~1000

Machine details

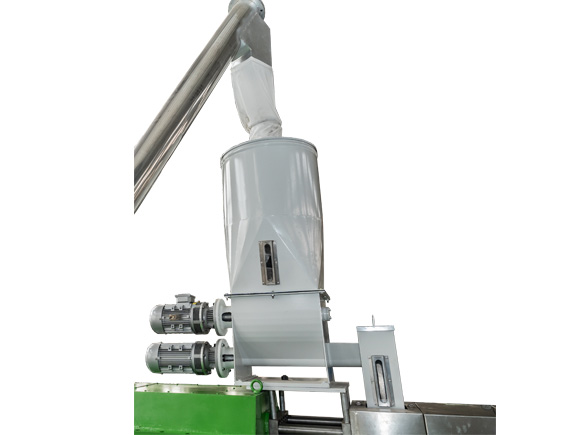

Feeder with stirring

Single screw feeder with special design of combination, There is stirring with motor in the feeder, so that the material won't stick together. and it can be feeder into the extruder stablly.

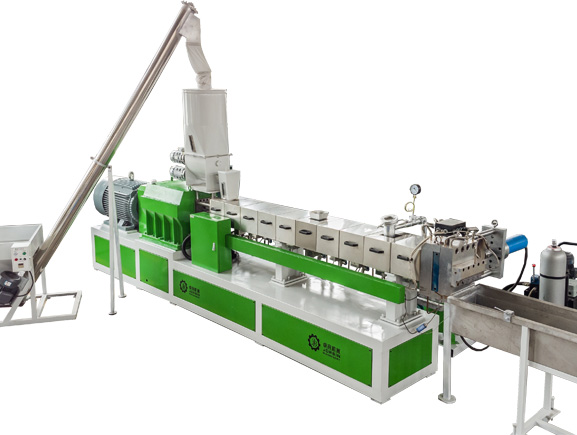

Twin screw extrusion

Co-rotation twin screw, the screw & elements: W6Mo5Cr4V2 (6542#) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.The barrel is made of 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth and abrasion resistant. The hardness is HRC60-64. And each section of barrel has its won fuction.

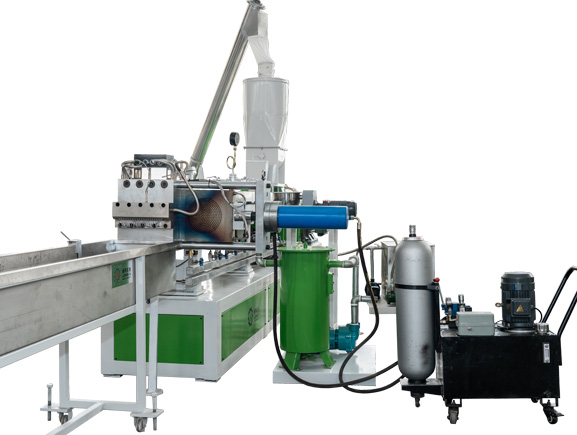

Hydraulic station and vacuum

Usually the machine will be with one natural degasing and one vacuum degasing, so that there will be less air bubbles in the final pellets. Meanwhile hydrauic screen changer fileter can filt more dirtys in the material. So that the final pellsts will be with high quality.

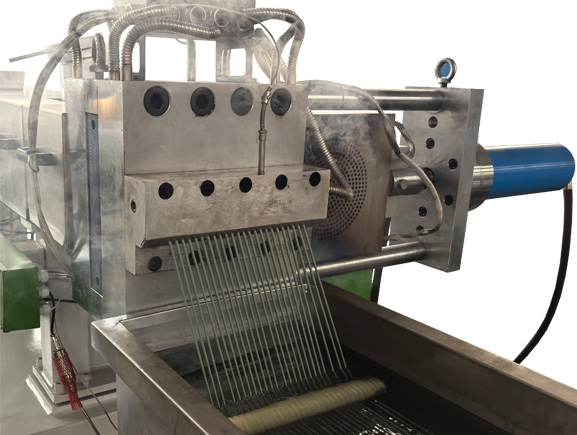

Screen changer and die

There are several types of screen changer: Single plate screen chager, round bar screen changer and laster filter. Customer can use any kind of screen according to the dirty of raw material and where you will use the final pellets. and the die we have pull strap, water-ring and underwater pelletizing way.

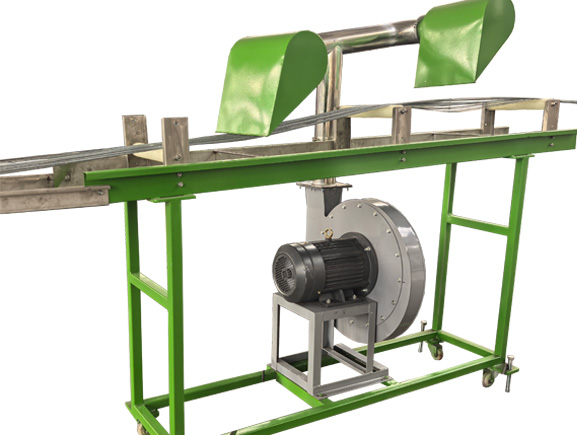

Gale dryer

Adopt one suction one blower, force cooling the material, with collecting water box to blow water on the surface of material. Our new design can collect the water and send the water into the tank so that the water won't go everywhere.

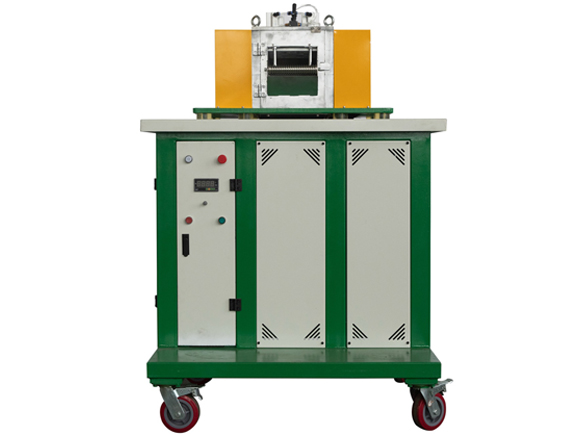

Pelletizer

Material come out from the die is like noodles, and the gale dryer will blow the water outside, then it will be send into the pelletizer to cut the material into pellets.There are several kinds of pelletizer, and different capacity the pelletizer power is different.

Complete machine line

The machine can compound PP PE with Calcium Carbonate and filler Masterbatch and some other additives. Twin screw extruder with Strand or die-face with water circulation.

JORBIN MACHINER, we promise to supply high quality machine with high competitive prices.

Expecting cooperation with you, Let us become friendly partners, common development!
